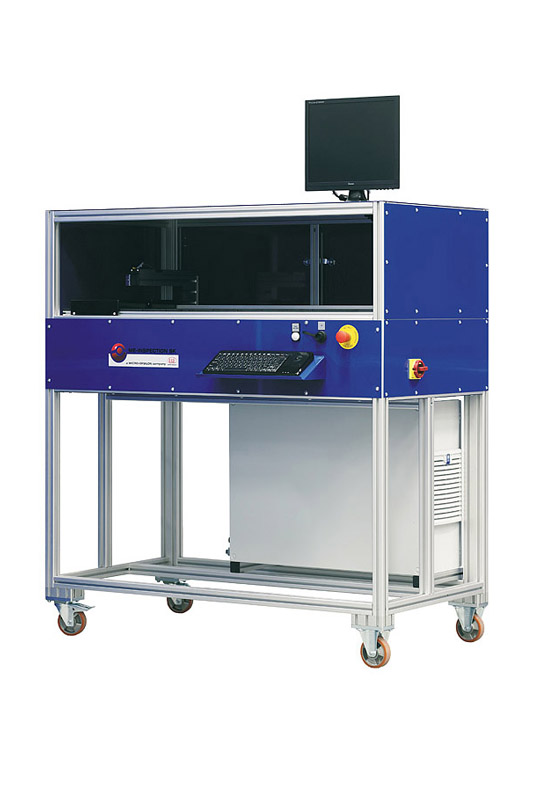

The TCP8302.T OffLine profilometer

Technical parameters:

  • Width measurement range of up to 1,000 mm (standards are 600, 800, 1,000, and 1,200 mm)
  • Thickness measurement range of up to 100 mm (standards are 50 and 100 mm)
  • Width precision < ±100 µm (3 sigma)
  • Thickness precision < ±10 µm (3 sigma)

Suitable for:

  • tread
  • sidewall (1 or 2 profiles)
  • inner liner
  • rubber strips (max. 6 strips)
  • die

Versions:

  • standard offline profilometer
  • two-axis offline profilometer (for measuring in multiple measurement lines)

Options:

  • die holder
  • calibration unit

Benefits:

  • Contact-free measurement of profile geometry
  • The ability to relocate the measurement device within a production hall
  • An economical solution that will serve multiple production lines
  • Automatic calibration at regular intervals
