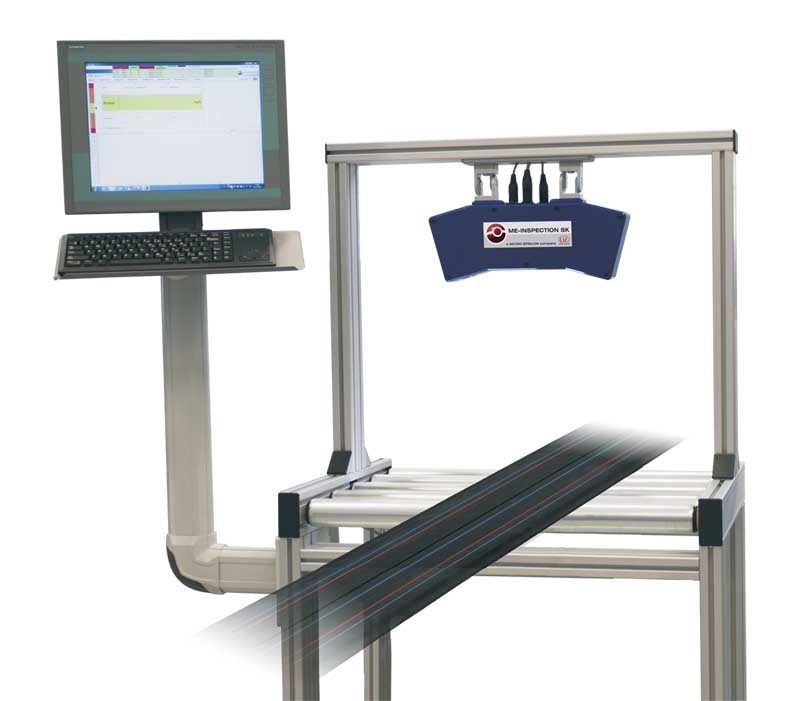

The TWI8301.I tire width inspection

Technical parameters:

  • Measurement range – width:
    • up to 900 mm (standard system)
    • up to 600 mm (stereo vision)
  • Standard width precision < ±150 µm (3 sigma)
  • Stereo vision width precision < ±100 µm (3 sigma)

Suitable for:

  • tread
  • sidewall (1 or 2 profiles)
  • inner liner

Versions:

  • Width measurement – standard
  • Width measurement – stereo vision

Options:

  • Calibration unit
  • Color-marking check
  • Combining with a traversing profilometer
  • Combining with a continuous scale

Benefits:

  • Contact-free measurement of profile width
  • Online measuring system for quality control
  • This system can be used for controlling an extrusion head/line
  • This system can be used for automatic profile sorting
  • Stereo vision – correct width detection in 3D space
